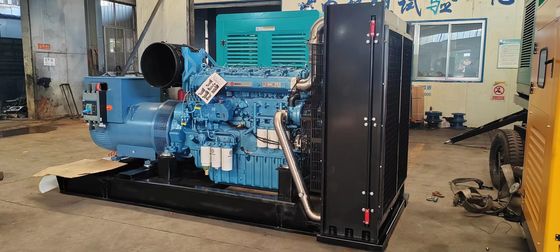

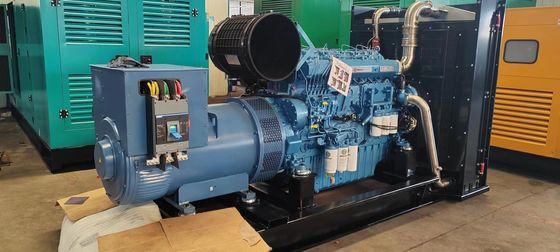

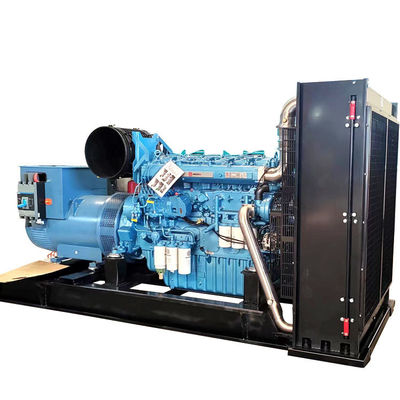

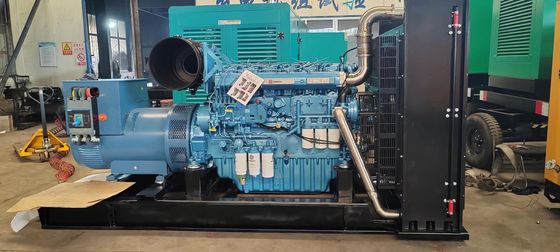

Technical parameters of Weichai Boduan 550KW diesel generator set
Rated frequency: 50Hz
Unit power/capacity: 550KW/687.5KVA
Rated speed: 1500rpm
Power factor: COS Φ= 0.8 (lag)
Starting method: DC24V electric starting
Output voltage: 400V/230V
Cooling method: closed water circulation cooling
Output current: 990A
Fuel grade: (standard) 0 # light diesel (at room temperature)
Technical parameters of Weichai Boduan diesel engine

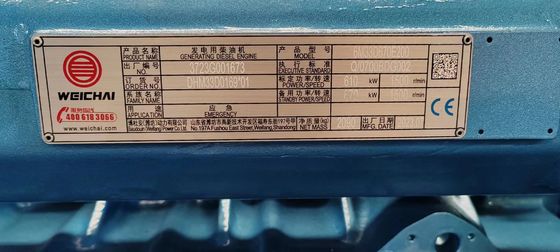

Brand/Origin: Weichai Boduan/Weifang, Shandong
Fuel consumption (load): 210g/W • h
Diesel engine model: 6M33D670E200
Speed regulation method: electronic speed regulation
Diesel engine power: 609/670KW
Tail gas emission standard: National II
Number of cylinders/cylinder structure: 6 cylinders/inline
Bore stroke: 150 × 185 mm
