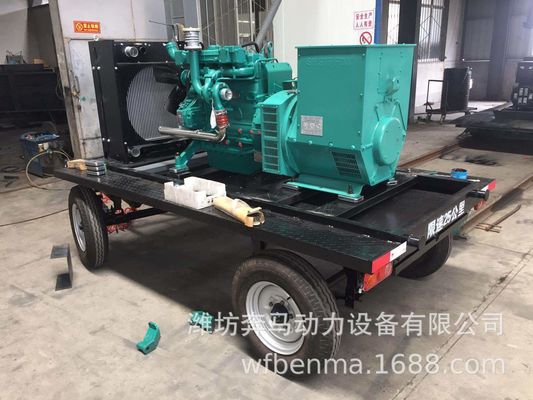

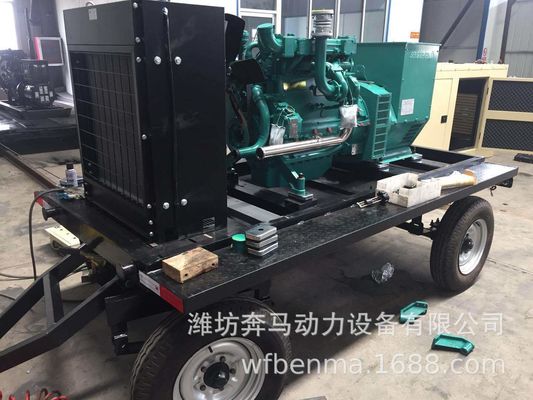

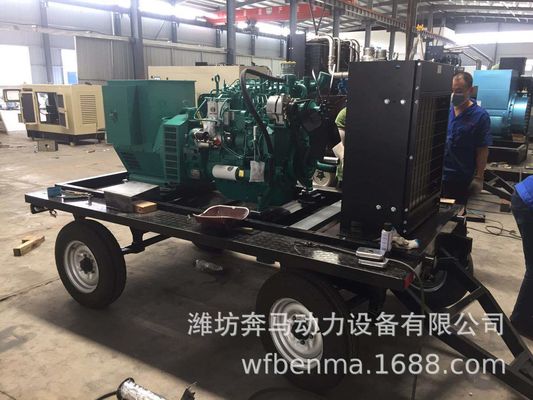

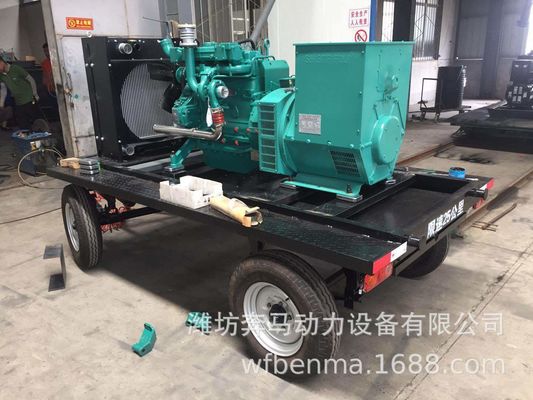

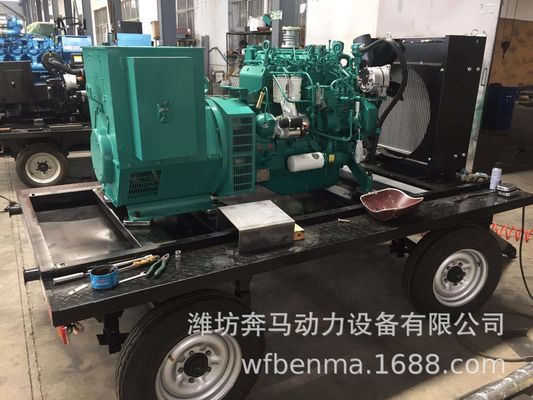

Equipment parameters of 100KW Weichai diesel generator set: Diesel generator set data Model BM80GF Rated output power (KVA/KW) 100/80 Rated output current (A) 144 Wiring method: three-phase four wire Power factor 0.8 (lagging) Starting method: 24V DC power start Frequency (Hz) 50 Unit weight (kg) 1000 Unit size (length * width * height) 2000 * 880 * 1300mm Diesel engine data Manufacturer Weichai Power Co., Ltd Model WP4D100E200 Rated speed (Rpm) 1500 Engine power (KW) 100 Bore stroke 105 * 130 Compression ratio 18:1 Number of cylinders 4 Fuel consumption rate (g/kWh) ≤ 205 Speed regulation method mechanical Oil fuel consumption ratio (%) ≤ 0.2 Displacement (L) 4.5 Air intake method: exhaust gas turbocharging Engine cooling method Satisfying ambient temperature of 40 ℃, radiator, belt driven cooling fan, with fan cover Generator data ManufacturerShanghai Lingyu Electric Motor Co., Ltd ModelSTF-80 Power (KVA/KW)100/80 Protection levelIP22 Insulation levelH power factor0.8 lag Range of no-load voltage adjustment≥ ± 5% Voltage control modeAVR Efficiency (%)eighty-eight point four Wiring methodThree phase four wire
