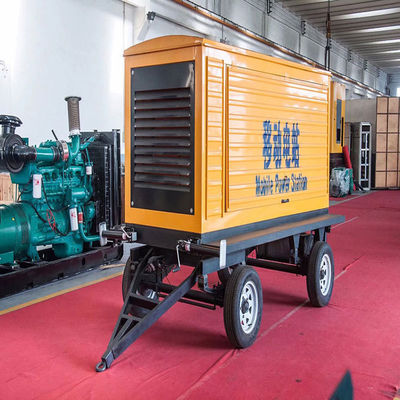

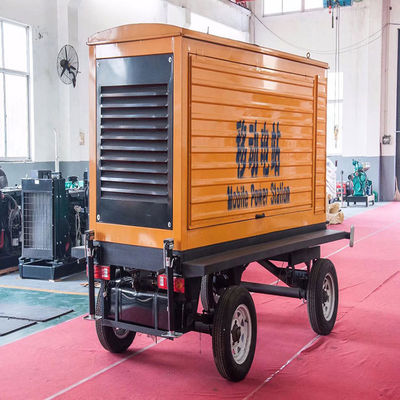

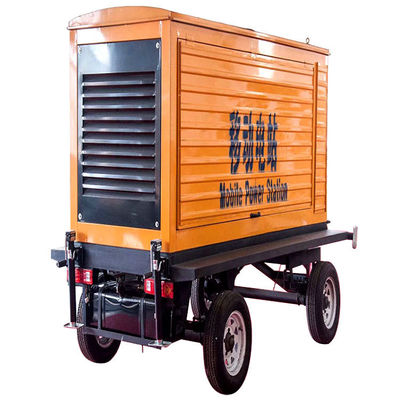

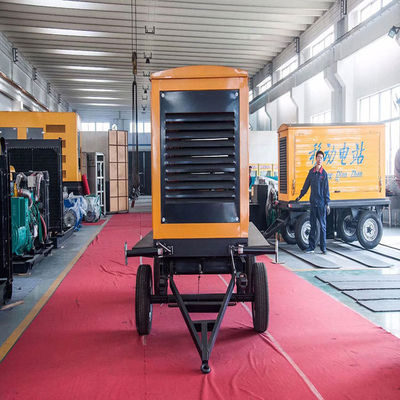

Weichai diesel generator set parameters 100KW 1、 Technical specifications (1) Model: 100GF Common power (KW): 100 Backup power (KW): 132 Frequency: 50Hz Output voltage: 400/230V Speed: 1500rpm Power factor: COS Φ= 0.8 (lag) Fuel consumption (g/Kw * h): 25 Maximum output current (A): 180 (recommended to use No. 0 diesel) Number of phases/lines: three-phase four wire Noise LP7m: 105dB External dimensions (mm): 2470 * 930 * 1450 (external dimensions are subject to the actual product) Weight: 1550Kg (weight based on actual product) (2) Diesel engine: Brand: Deutz Origin: Weichai Power Co., Ltd Model: WP6D132E200 Cooling start: closed water cooling Starting method: 24V DC power start Number of cylinders: 6 Diesel engine oil capacity: 18L Diesel engine coolant capacity: 16L Fuel supply method: direct injection Air intake method: turbocharging Cylinder arrangement: inline Intercooling method: water cooling Fuel model: Domestic 0 # light diesel Speed regulation method: mechanical/electronic speed regulation Oil model: WD/40 Cylinder diameter/stroke: 105/130mm (3) Generator: Brand: Marathon Stanford Origin: Jiangsu Model: ZD-100 Material: Pure copper Insulation level: H Voltage control mode: AVR Voltage: ≤ 4% Rated voltage (V): 400/230 Protection level: IP23 Frequency: 50Hz Phase number/wiring: three-phase four wire/Y-shaped winding connection Frequency adjustment rate (%): ≤ ± 0.5 (steady-state)+10~-7 (transient) Voltage adjustment rate (%): ≤ ± 0.5 (steady-state)+20~-15 (transient) Frequency fluctuation rate (%): ≤ ± 0.5 Voltage fluctuation rate (%): ≤ ± 0.5
