Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry

Name: Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry
Brand: Weifang Benma Power Equipment Co., Ltd.
SKU: WP10D264E200
Price: 7.00 USD
Availability: InStock

All Products

Kangmingsi Diesel Generator Set
(15)

Weichai Diesel Generator Set
(33)

Guangxi Yuchai Generator Set
(14)

Silent Diesel Generator Set
(31)

Perkins Diesel Generator Set
(2)

Container Series Generator Set
(4)

Shanghai Shendong Generator Set
(4)

Weifang Generator Set
(6)

Certification

I'm Online Chat Now

Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry

Large Image : Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry

Product Details:

Place of Origin:	China
Brand Name:	weichai
Model Number:	WP10D264E200

Payment & Shipping Terms:

Minimum Order Quantity:	1 unit
Price:	$14,892.00/units >=1 units
Packaging Details:	Box packaging

Contact Now

Marathon Alternator 230V Weichai Diesel Generator Set for Water-Cooling System Industry

Description

Warranty:	3months-1year	Rated Voltage:	230V, 400V
Rated Current:	360A	Speed:	1500RPM, 1800RPM
Frequency:	50/60HZ	Starting System:	Auto Start
Type:	Trailer Type, Silent Type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type, Silent	Weight:	2072kg
Cooling System Type:	Water Cooling System	Alternator:	Marathon
Options:	Automatic Transfer Switch	Engine Type:	Direction Injection
Product Name:	Silent Speaker Unit	Color:	Customers' Request
Phase:	1 Phase/3 Phase	ControllerControl Panel:	Smargen
Rated Power:	200kw

Details Images

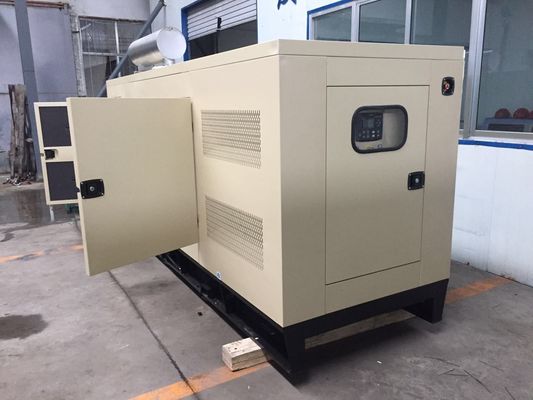

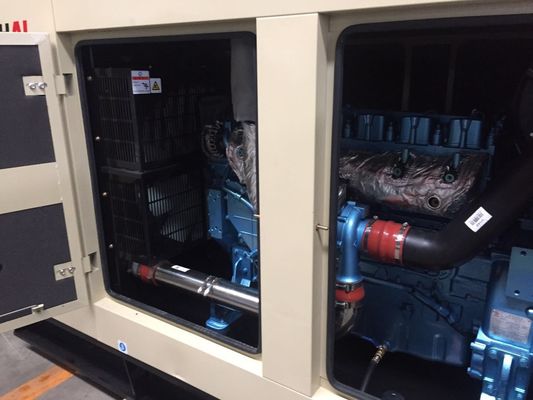

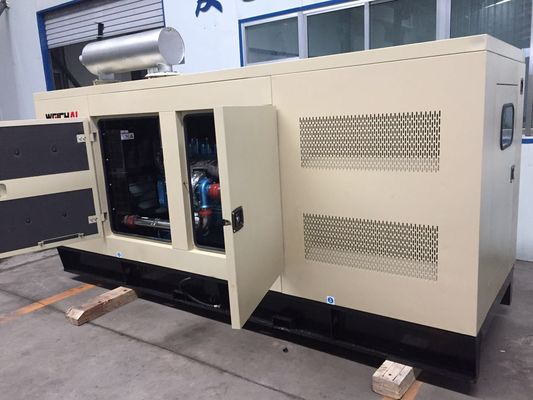

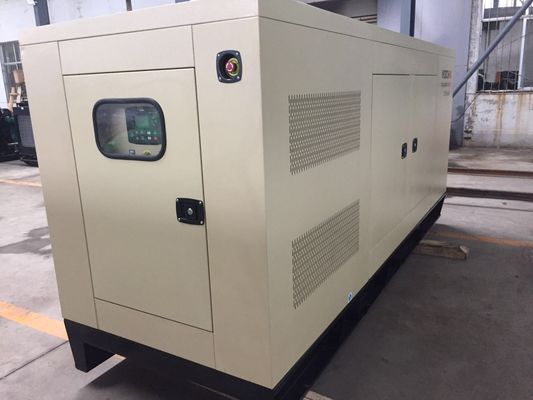

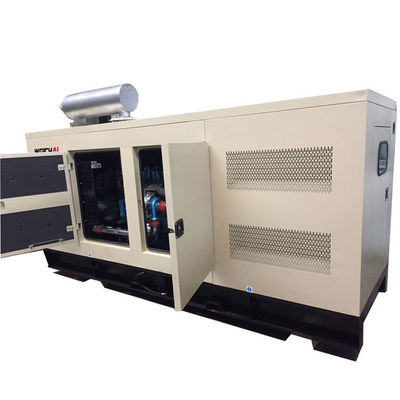

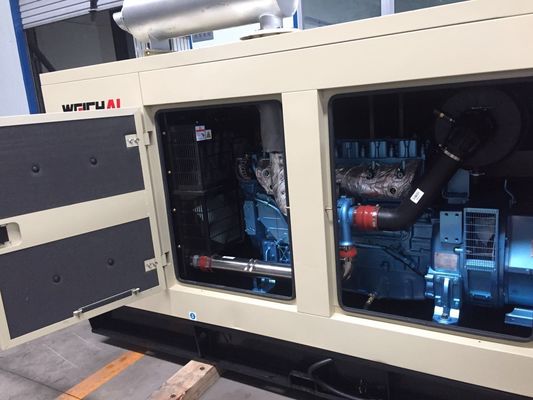

200KW Weichai WP10D264E200 Diesel Generator Set with Silent Speaker

Equipment parameters of 200KW diesel generator set: Weichai Lanqing diesel generator set parameters 200KW 1、 Technical specifications (1) Model: 200GF Common power (KW): 200 Backup power (KW): 264 Frequency: 50Hz Output voltage: 400/230V Speed: 1500rpm Power factor: COS Φ= 0.8 (lag) Fuel consumption (g/Kw * h): 57.4 (recommended to use No. 0 diesel) Output current (A): 360 Number of phases/lines: three-phase four wire Noise LP7m: 105dB External dimensions (mm): 2858 * 1167 * 1800 (external dimensions are subject to the actual product) Weight: 2072Kg (weight based on actual product) (2) Diesel engine: Brand: Weichai Lanqing Manufacturer: Weichai Power Co., Ltd Model: WP10D264E200 Cooling start: closed water cooling Starting method: 24V DC power start Air intake method: turbocharging Number of cylinders: 6 Total cylinder displacement L: 9.726 Fuel supply method: direct injection Cylinder arrangement: upright Intercooling method: water cooling Fuel model: Domestic 0 # light diesel Speed regulation mode: mechanical/electronic Oil model: WD/40 Cylinder diameter/stroke: 126/130mm Diesel engine oil capacity L: 23

Products Description

Product packaging

Our Factory

Manufacturing Technique

Certifications
