230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS

230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS

Large Image :  230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS

Product Details:
Place of Origin: China
Brand Name: weichai
Model Number: WP13D440E200
Payment & Shipping Terms:
Minimum Order Quantity: 1 unit
Price: $49,169.00/units >=1 units
Packaging Details: Box packaging
Contact Now

230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS

Description
Warranty: 3months-1year Rated Voltage: 230V, 400V
Rated Current: 720A Speed: 1500RPM, 1800RPM
Frequency: 50/60HZ Starting System: Auto Start
Type: Trailer Type, Silent Type, Container Type, Super Silent Type, Open Frame, Portable Type, Mobile Type, Canopy Type, Silent Cooling System Type: Water Cooling System
Alternator: Marathon Options: Automatic Transfer Switch
Engine Type: Direction Injection Product Name: Silent Speaker Unit
Color: Customers' Request Phase: 1 Phase/3 Phase
ControllerControl Panel: Smargen Rated Power: 400KW

Details Images
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 0
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 1
Parameters of 300KW Cummins diesel generator set
Diesel generator set data Model BM400GF Rated output power (KVA/KW) 500/400 Wiring method: three-phase four wire Power factor 0.8 (lagging) Starting method: 24V DC power start Unit weight (kg) 4.5 Frequency (Hz) 50 Unit size (length * width * height) 3600X1900X2100MM Diesel engine data Manufacturer Weichai Co., Ltd Model WP13D440E200 Rated speed (Rpm) 1500 Maximum engine power (KW) 440 Bore stroke 127X165 Compression ratio 17:1 Number of cylinders 6 Fuel consumption rate (g/kWh) 203 Compression pressure (n>200r/min)>2.5 Oil consumption rate g/W · h ≤ 0.5 Total piston displacement L79.17 Air intake method: exhaust gas turbocharging and intercooling The engine cooling method meets the ambient temperature of 40 ℃. The radiator is belt driven and the cooling fan is equipped with a fan safety cover Generator data Manufacturer Benma New Energy Model BMQW-400 Power (KVA/KW) 500/400 Protection level IP22 Insulation level H Power factor 0.8 lagging No load voltage adjustment range>± 5% Voltage control mode AVR Efficiency (%) 80 Wiring method: three-phase four wire
Products Description
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 2

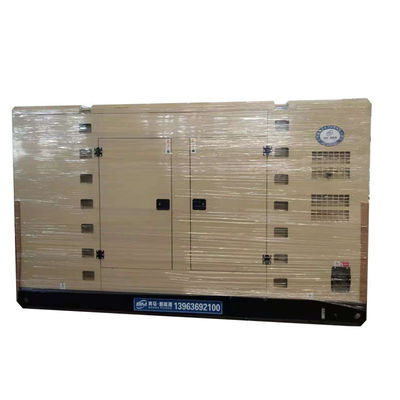

Product packaging
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 3
Our Factory
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 4
Manufacturing Technique
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 5
Certifications
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 6
Recommend Products
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 7
230V 400KW Weichai Silent Box Diesel Generator Set with Dual Power Conversion and ATS 8
