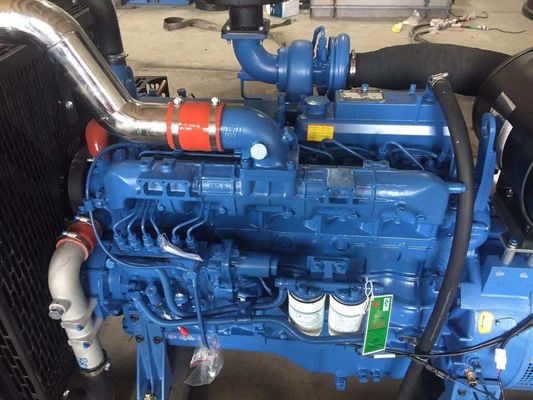

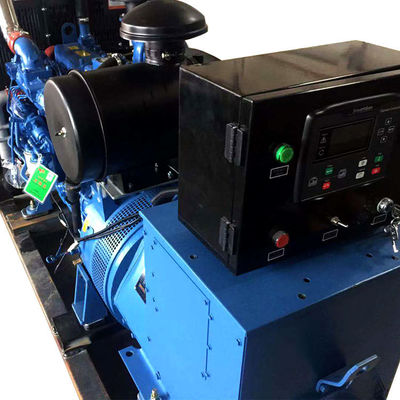

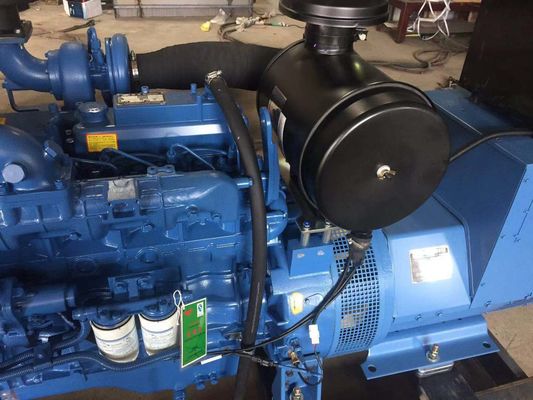

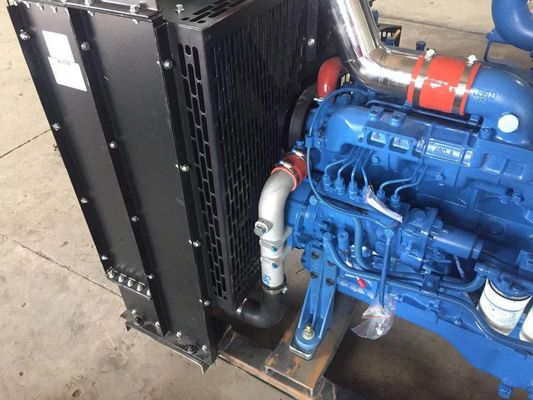

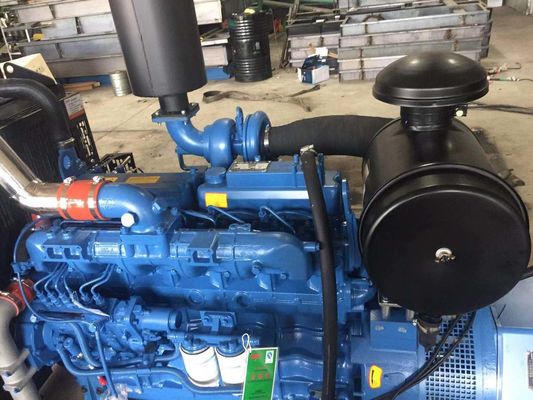

Generator set parameters: Unit model: YC120GF Backup power (KW): 120 Common power (KW): 100 Unit size (mm): 2500 * 1000 * 1600 Unit weight (kg): 1500 Fuel consumption (g/kg/h): 200 frequency (HZ): 50 Speed (r/min): 1500 LP7m Noise (dB): ≤ 102 Transient voltage adjustment rate: ≤ -15%/+20% Steady state voltage adjustment rate: ≤ ± 1% Voltage stability time: ≤ 3sec Voltage fluctuation rate: ≤ 0.5% Voltage waveform distortion: ≤ 8% Steady state frequency adjustment rate: ≤ 5% Transient frequency adjustment rate: ≤ -10%/+12% Frequency stability time: 3sec Frequency fluctuation rate: ≤ 1.5% Engine parameters: Diesel engine brand: Yuchai Machinery manufacturer: Guangxi Yuchai Machinery Co., Ltd Diesel engine model: YC6B180L-D20 * * * Power (KW): 132 Rated power (KW): 120 cylinders/arrangement: 6 cylinders/inline Compression ratio: 17.5:1 cylinder diameter * stroke (mm): 108 * 125 Displacement (L): 6.871 Oil capacity (L): 17 Oil consumption rate (g/w. h): ≤ 1.50 Emission standard: TIER II Cooling method: Closed water cooling cycle Start method: DC24V electric start Air intake method: turbocharging, intercooling type: four stroke, vertical External dimensions: 1350 * 785 * 1100 Oil supply method: direct injection Fuel standard: 0 # light diesel (at room temperature)
